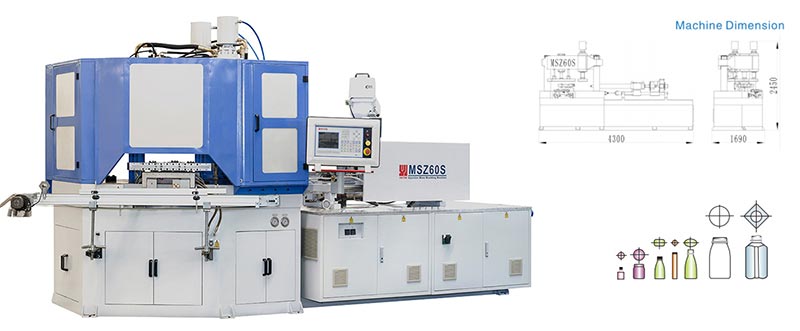

MSZ60S Injection Blow Molding Machine[fusion_button link=”/contact/” title=”” target=”_self” link_attributes=”” alignment=”right” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” color=”default” button_gradient_top_color=”” button_gradient_bottom_color=”” button_gradient_top_color_hover=”” button_gradient_bottom_color_hover=”” accent_color=”” accent_hover_color=”” type=”” bevel_color=”” border_width=”” size=”” stretch=”default” shape=”” icon=”fa-envelope-o” icon_position=”left” icon_divider=”no” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=””]GET QUOTATION [/fusion_button]
[/fusion_text][fusion_imageframe image_id=”273″ style_type=”none” stylecolor=”” hover_type=”none” bordersize=”” bordercolor=”” borderradius=”” align=”none” lightbox=”no” gallery_id=”” lightbox_image=”” alt=”” link=”” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=””]https://es.victorcn.com/wp-content/uploads/2018/02/MSZ60S-Injection-Blow-Molding-Machine.jpg[/fusion_imageframe][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” hundred_percent_height=”no” hundred_percent_height_scroll=”no” hundred_percent_height_center_content=”yes” equal_height_columns=”no” menu_anchor=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_mp4=”” video_webm=”” video_ogv=”” video_url=”” video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” video_preview_image=”” border_size=”” border_color=”” border_style=”solid” margin_top=”” margin_bottom=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=””][fusion_builder_row][fusion_builder_column type=”1_1″ layout=”1_1″ spacing=”” center_content=”no” link=”” target=”_self” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” hover_type=”none” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” dimension_margin=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_text]
// Techhnical Features:
Special designed dual-cylinder clamping unit,mould open and close fast,idle cycle time fast,efficiency high.
Dual proportional hydraulic system,precision control,energy saving 25% more than vane pump drive.
Horizontal injection design,plasticating reliable and operation easy.
Single crossbeam style clamping system,easy for mould amounting
/// Optional:
Servo pump drive, 25%-45% energy saving is available.
In mold labeling solution, one stop procedure, save cost of labor and workshop, completely fitting and excellent appearance.
[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_1″ layout=”1_1″ spacing=”” center_content=”no” link=”” target=”_self” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” hover_type=”none” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” dimension_margin=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_text][/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” hundred_percent_height=”no” hundred_percent_height_scroll=”no” hundred_percent_height_center_content=”yes” equal_height_columns=”no” menu_anchor=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_mp4=”” video_webm=”” video_ogv=”” video_url=”” video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” video_preview_image=”” border_size=”” border_color=”” border_style=”solid” margin_top=”” margin_bottom=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=””][fusion_builder_row][fusion_builder_column type=”1_1″ layout=”1_1″ spacing=”” center_content=”no” link=”” target=”_self” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” hover_type=”none” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” dimension_margin=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_tabs design=”classic” layout=”horizontal” justified=”yes” backgroundcolor=”” inactivecolor=”” bordercolor=”” icon=”” icon_position=”” icon_size=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=””][fusion_tab title=”Mould Cavitation:” icon=”fa-cogs”][fusion_table]
No. of cavities) | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
Neck Diameter(mm) | 45 | 40 | 35 | 35 | 30 | 25 | 20 | 10 |
Body Diameter(mm) | 80 | 60 | 50 | 45 | 40 | 30 | 25 | 20 |
Max. Height(mm) | 220 | 180 | 140 | 100 | 80 | 60 | 50 | 40 |
Max. Volume(ml) | 1000 | 400 | 200 | 100 | 60 | 30 | 20 | 15 |
[/fusion_table]
[/fusion_tab][fusion_tab title=”Main Technical Parameters” icon=”fa-cog”][fusion_table]
Injection system | Unit | MSZ60S | |
Screw Diameter | mm | 50 | 55 |
Screw L/D | L/D | 23:1 | 23:1 |
Injection weight(HDPE) | g | 298 | 360 |
Max.screw speed | rpm | 10-235 | |
Heating capacity | KW | 10.8 | |
Clamping system | |||
Clamping force of injection | KN | 750 | |
Clamping force of blowing | KN | 89 | |
Max.Platen size(L*W) | mm | 740×390 | |
Min.Mold thickness(H) | mm | 280 | |
Heating capacity of mould | KW | 6 | |
Stripping system | |||
Stripping stroke | mm | 200 | |
Dry cycle | sec | 3.5 | |
Driving system | |||
Motor power | KW | 30 | |
Hydraulic pressure | Mpa | 15 | |
Product range | |||
Suitable bottle range | ml | 5-800 | |
Max.bottle height | mm | ≤200 | |
Max.Dia.of bottle | mm | ≤100 | |
Others | |||
Min.Air pressure | Mpa | 1.0 | |
Discharge rate of compressed air | M³/min | ≥0.8 | |
Water flowage | M³/h | 5 | |
Total rated power with mold heating | KW | 46.8 | |
Dimension(L*W*H) | M | 4.3×1.69×2.45 | |
Net weight | ton | 8.6 |
